Hyundai HL960HD Wheel Loader

  • Net Power: 222 hp (166 kW) at 2,200 rpm

    Operating Weight: 119,930 kg (43,940 lbs)

    Standard Bucket: 3.3 m3 (4.3 yd3)

  • Hyundai HL960HD Cabin

  • Performance

    • Hydraulic Locking Front axle w/ conventional rear axle
    • Hi-Mate Remote Management System
    • Eco Gauge
    • Improved Bucket Fill Factor

  • Convenience

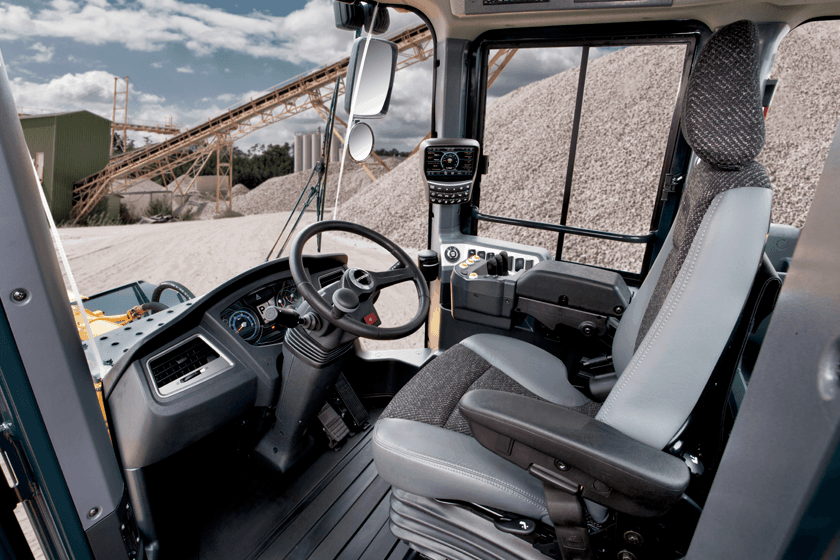

    • Cab Comfort
    • Audio System
    • Heated Air-Ride Seat
    • Wide Touchscreen Monitor

  • Serviceability

    • Fully Sealed Engine Room with Tilt-Back Hood
    • Centralized and Easy Access to Service Points
    • Engine Air Filter with Increased Service Life
    • Initial Maintenance Interval

Skilled professionals know the importance of properly maintaining and taking care of their equipment because their tools are responsible for getting so much work done. The same is true of the machinery and powerful construction equipment that your business relies on, which is why it is so important to choose the right machine and take care of it. The Hyundai HL960HD is a powerful wheel loader that is perfect for clearing snow, managing debris at a worksite, and hauling aggregate materials up into a receptacle. Here at Quality Fleet Service in South Hadley, MA, we are ready to help you choose the right tool for your job, which is why we are proud to offer the amazing lineup of Hyundai wheel loaders and construction equipment. Visit us and one of our knowledgeable; friendly salespeople will work with you to make sure you get exactly the right machinery for your business. You can try out what we sell here at our test pit to get a feel for how the equipment will perform in the real world, and we provide service and maintenance for your machinery here at our facility and on-site when needed. Visit us today at Quality Fleet Service to see what we can do for you.

The Hyundai HL960HD

The Hyundai HL960HD sits about in the middle of Hyundai's wheel loader lineup, providing you with a great option for excellent power without going overboard. Of course, if you need something even more powerful, then we can help you with that too--Hyundai's lineup includes a great option for pretty much every business need. In general, however, this wheel loader is ideal for making sure you have enough power to tackle a wide range of jobs, without falling short or paying for more than you really need.

A powerful engine in the Hyundai HL960HD provides up to 222 hp and up to 770 lb-ft of torque for great performance. It has a maximum operating weight of up to 43,940 lbs or up to 19,930 kg and a full-turn tipping load of up to 29,705 lbs or 13,475 kg. The standard bucket on the HL960HD gives you 4.3 cu.yd. of capacity or up to 3.3 cu.m. so you have plenty of space for scooping up gravel or clearing debris.

When traveling forward, the Hyundai HL960HD has a maximum speed of up to 24.9 mph and a top speed of up to 18.3 mph when in reverse. The bucket breakout force on this model is 36,751 lbs or 16,670 kg, and it has a dump clearance of well over 9 feet. All told, this is a fantastic wheel loader that is ideal for handling a lot of different tasks.

If you are unsure of exactly what you need, then come visit us at Quality Fleet Service to use our test pit and see what would work best for you. Our large test pit allows you to try out different pieces of machinery in a real-world setting to see how they compare and get a feel for each one. This lets you buy with confidence, knowing that you have chosen the right equipment for your business, and is just one more way we make sure your needs are met.

Hyundai's Exceptional Warranty

Here at Quality Fleet Service, we are concerned with not only ensuring you get the right equipment for your work but also providing you with ongoing support to keep your machinery up and running. That is why we are so pleased with the warranty offered on the Hyundai HL960HD and the other wheel loaders in Hyundai's lineup. This is some of the best warranty coverage in the industry, and it ensures we can keep our customers working hard for years to come.

The Hyundai HL960HD is covered by:

  • 3-year or 3,000-hour full machine warranty
  • 5-year or 10,000-hour structural warranty
  • Limited lifetime articulation joint warranty

If you want extra coverage, then Hyundai offers an extended warranty of up to 5 years or 10,000 hours of full machine protection. Best of all, you do not have to decide on the extended warranty when you buy your equipment--you can opt for the extended warranty at any time while the standard warranty is still in effect.

Here at Quality Fleet Service, we use Hyundai factory parts whenever possible while performing maintenance or making repairs on your equipment. All Hyundai parts are covered by a 1 year or 1,500-hour factory warranty, which means you can rest assured that your machinery is in great condition. As a licensed Hyundai dealer and service center, our technicians are well-trained in caring for your equipment and ensure your warranties remain intact for as long as possible.

  • Engine

    Make/model CUMMINS / QSB6.7
    Type Water-cooled, 4-cycle, turbo-charged air-cooled, direct injection, electronically controlled diesel engine
    Gross power 225 HP (168 kW) / 2,200 rpm
    Net power 222 HP (166 kW) / 2,200 rpm
    Maximum torque 106 kg·m (770 lb·ft) / 1,500 rpm
    No. of cylinders 6
    Bore × Stroke 107 mm (4.21") x 124 mm (4.88")
    Displacement 6.7L (408 in³)
    Compression ratio 17.3 : 1
    Air cleaner Dry, 2-stage dual elements
    Alternator 24 V - 95 Amp
    Battery 2 x 12 V - 160 Ah, 900 CCA
    Starting motor 24 V - 7.8 kW

  • Hydraulic System

    Type Load-sensing hydraulic system
    Pump Variable-displacement piston pump, 246L /min (65 gpm)
    Control valve 2-spool (bucket, boom)
    3-spool (bucket, boom, aux)
    System pressure 280 kgf/cm² (3,983 psi)
    Lift circuit Valve has four functions: raise, hold, lower and float
    Can adjust automatic kick-out from horizontal to full lift
    Tilt circuit Valve has three functions: tilt back, hold and dump
    Can adjust automatic bucket positioner to desired load angle
    Cylinder Type: Double acting
    No. of cylinders-bore x stroke:
    Tilt: 1-160 mm (6.3") x 530 mm (20.9")
    Cycle times Raise: 5.9 sec
    Dump: 1.3 sec
    Lower: 3.1 sec
    Total: 10.3 sec

  • Transmission

    Torque converter type 3-element, single-stage, single-phase
    Travel speed, km/h (mph) Forward: 4 Speed 1st 6.3 (3.9) | 2nd 11.9 (7.4) | 3rd 24 (14.9) | 4th 38.9 (24.2)
    Travel speed, km/h (mph) Forward: 5 Speed w/ lockup clutch 1st 6.6 (4.1) | 2nd 11.6 (7.2) | 3rd 17.9 (11.1) | 4th 27.9 (17.3) | 5th 40.0 (24.9)
    Travel speed, km/h (mph) Reverse: 4 Speed 1st 6.6 (4.1) | 2nd 12.6 (7.8) | 3rd 25.3 (15.7)
    Travel speed, km/h (mph) Reverse: 5 Speed w/ lockup clutch 1st 7.1 (4.4) | 2nd 12.3 (7.6) | 3rd 29.4 (18.3)

  • Axles

    Drive system Four-wheel drive system
    Mount Rigid front axle and oscillating rear axle
    Rear axle oscillation ±12° center pin-loaded
    Hub reduction Planetary reduction at wheel end
    Differential Hyd Lock (front) / Conventional (rear)
    Reduction ratio 24.666

  • Brakes

    Service brakes Hydraulically actuated, wet-disc brakes actuate all 4 wheels • Independent axle-by-axle system • Self-adjusting and wheel speed brake
    Parking brake Spring-applied, hydraulically released brake
    Emergency brake When brake oil pressure drops, indicator light alerts operator, and parking brake automatically applies

  • Tires

    Type Tubeless, loader design tires
    Standard 23.5 R25, L3
    Options include 23.5-25, 20 PR, L3 | 23.5-25, 20 PR, L5
    23.5, R25 XHA2, L3 | 20.5-25, 16PR, L3

  • Steering System

    Type Load-sensing hydrostatic articulated steering
    Pump Variable-displacement piston pump 149L/min (39 gpm)
    Relief valve setting 250 kgf/cm² (3,556 psi)
    Cylinder Double acting
    2-75 mm (2.9") x 424 mm (16.7")
    Steering angle 40° both right and left angle, respectively
    Additional Features Center-point frame articulation
    Tilt and telescopic steering column

  • Service Refill Capacities

    Fuel tank 300L (79.3 gal)
    DEF tank 27L (7.1 gal)
    Cooling system 42L (11.1 gal)
    Crankcase 18L (4.8 gal)
    Transmission 33L (8.7 gal)
    Front axle 42L (11.1 gal)
    Rear axle 40L (10.6 gal)
    Hydraulic tank 110L (29.1 gal)
    Hydraulic system (including tank) 200L (52.8 gal)

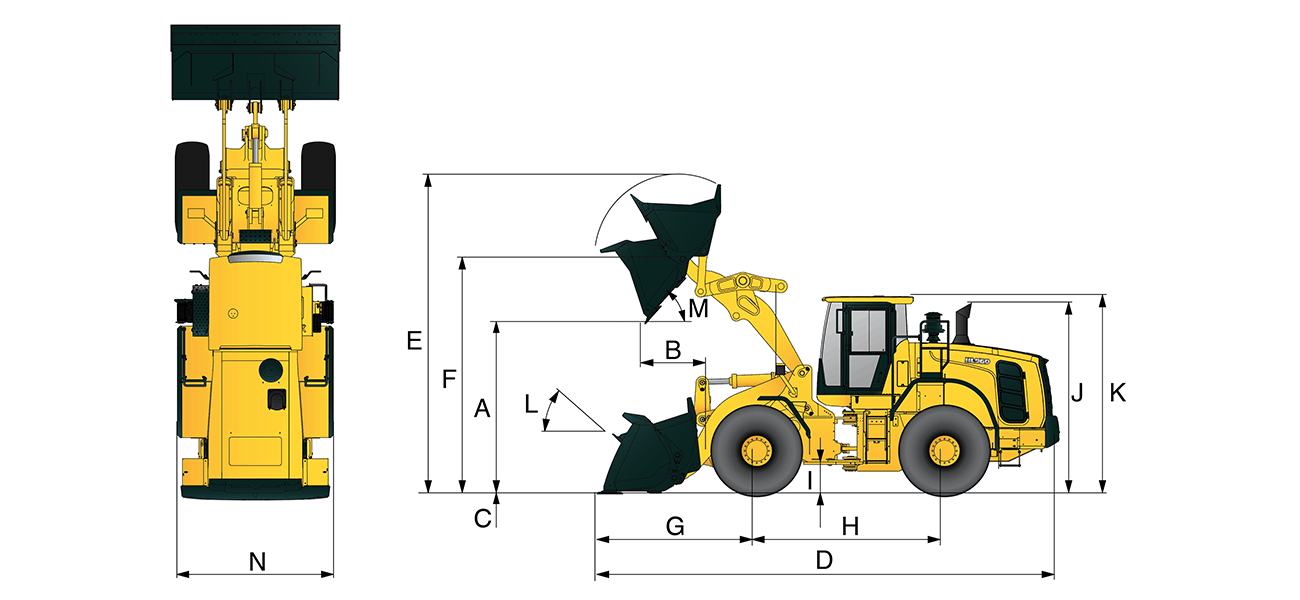

Dimensions

  • A. Dumping clearance at max. height and 45° dump angle 2,935mm (9' 7.5")
    B. Reach Full lift: 1,285mm (4' 2.5") | 2,134mm height (7 feet): 1,815mm (5' 11.5")
    C. Digging depth 90mm (3.5")
    D. Overall length (On ground | At carry) 8,140mm (26' 8.5") | 8,060mm (26' 5")
    E. Overall height (fully raised) 5,640mm (18' 6")
    F. Bucket pivot height (max) 4,105mm (13' 5.6")
    G. Front overhang 2,810mm (9' 2.6")
    H. Wheelbase 3,300mm (10' 9.9")
  • I. Ground clearance 410mm (1' 4.1")
    J. Height over exhaust 3,360mm (11' 0.3")
    K. Height over cab 3,450mm (11' 3.8")
    L. Rollback angle (On ground | At carry) 42° | 47°
    M. Dump angle 50°
    - Clearance circle, over bucket (carry position) 13,415mm (44')
    - Clearance circle, outside of tires 12,050mm (39' 6")
    - Clearance circle, inside of tires 6,510mm (21' 4.3")
    N. Overall width (with bucket | without bucket) 2,900mm (9' 6.2") | 2,770mm (9' 1.1")
Hyundai HL960HD Dimensions

Put Quality Fleet Service to Work for You

Whether you are in the market for a new wheel loader or need service for your current equipment, we are here to help. Our salespeople are not interested in pushing something you do not want on you; instead, they are here to listen to your needs and make sure you get exactly the right machinery for your business. We specialize in working with businesses because we love to see others in the area succeed and thrive in a wide range of industries.

Here at Quality Fleet Service, our repair and service shop is fully equipped to handle pretty much anything. We have hydraulic and aerial lift equipment and the tools to perform proper diagnostics and take care of your machinery--whether you need repairs or routine maintenance, we are here to help. And with our welding and fabrication equipment, we are ready to deal with a wide range of unexpected issues that might arise.

We also provide on-road and on-site service for our customers, coming to you to make repairs and perform maintenance when you cannot bring your machinery to us. 24-hour emergency service is even available in all kinds of weather, so we can make sure you keep working no matter what else is going on. All of this is to ensure you are able to get the job done because your success is our success. Call or come visit us at Quality Fleet Service today to get the right equipment for your business's needs.
