Hyundai HL940XT Wheel Loader

  • Net Power: 156 hp (116 kW) at 2,100 rpm

    Operating Weight: 13,490 kg (29,740 lbs)

    Standard Bucket: 2.3 m3 (3.0 yd3)

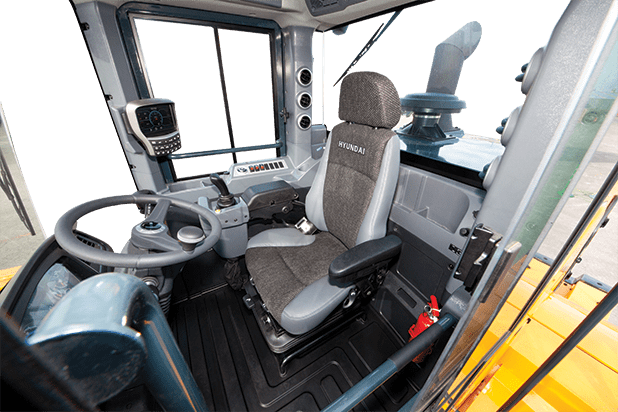

  • Hyundai HL940XT Inside Cab

  • Performance

    • Eco Pedal
    • Hi-Mate Remote Management System
    • Eco Gauge
    • Improved Bucket Fill Factor

  • Convenience

    • Cab Comfort
    • Audio System
    • Heated Air-Ride Seat
    • Wide Touchscreen Monitor

  • Serviceability

    • Fully Sealed Engine Room with Tilt-Back Hood
    • Centralized and Easy Access to Service Points
    • Engine Air Filter with Increased Service Life
    • Initial Maintenance Interval

A powerful and reliable wheel loader can be the very cornerstone of a business, keeping you up and running and getting the job done on time. The Hyundai HL940XT is the extended reach version of their standard HL940 model and is designed to handle a great deal of work. With an extended reach that gives you access to higher dump heights and a large standard bucket, the HL940XT is the perfect option for clearing debris at a job site, handling massive amounts of snow, and loading up aggregate materials into a truck.

Here at Quality Fleet Service in South Hadley, MA, we specialize in helping other businesses achieve their goals and succeed through the performance of their commercial equipment. We are proud to offer a large number of great Hyundai machines, including the HL940XT and other wheel loaders, so we can help you get exactly the right equipment for your needs. Our expert technicians will be here for you for years to come, providing maintenance service and repairs as needed, even coming to you on-site to get you back up and running right away. Visit us at Quality Fleet Service today to see what we can do for you.

The Hyundai HL940XT

Among the lineup of fantastic wheel loaders that we offer, the Hyundai HL940XT is actually the starting model, with the lowest operating rate and net power among available models. That does not mean it is less than a fantastic option for a wide range of uses; however, only that it is ideal for businesses with lower requirements. If you need something much more powerful, then Hyundai has you covered with a number of options to consider.

The net power of the HL940XT is up to 156 hp with a maximum torque of up to 622 lb-ft. It has an operating weight of up to 29,740 lbs or 13,490 kg, so keep that in mind as you are trying to decide on which Hyundai wheel loader is right for you. The standard bucket that it comes with has a capacity of up to 3.0 cu.yd. or up to 2.3 cu.m. and it has a breakout force of 24,470 lbs or 11,100 kg.

Going forward, the Hyundai HL940XT has a maximum speed of up to 24.9 mph and a top speed of up to 16.2 mph in reverse. It has a standard Z-bar design and a dump clearance of up to 10.5 feet, which is more than a foot greater than the regular HL940 model, due to its extended reach design. This can be very important if you know you will be loading materials into a large bin with high sides, so be sure to keep this in mind when choosing your wheel loader.

Here at Quality Fleet Service, we are ready to help you figure out exactly which wheel loader is right for you. Our test pit lets you try out your equipment before you buy it, so you know you have found the perfect choice for your business. Whether you are just getting started or looking to expand, we are here to help.

The Hyundai Warranty

One of the reasons we are so proud to offer Hyundai machinery is because they have one of the best warranties in the industry. Considering how crucial equipment like the Hyundai HL940XT is to a business like yours, you want to make sure that your investment in such machinery is protected and covered by a great warranty. The standard Hyundai warranty on this model includes:

  • 3-year or 3,000-hour full machine warranty
  • 5-year or 10,000-hour structural warranty
  • Limited lifetime warranty on articulation joints

In addition to this, Hyundai offers extended warranties on their products, including the HL940XT, which can give you up to 5 years or 10,000 hours of protection on the full machine. While a lot of other manufacturers offer extended warranties on their products, you usually have to buy it upfront when you purchase the machine. With the Hyundai extended warranty, however, you can buy it at any time while the HL940XT is still under its standard warranty.

We use Hyundai factory parts whenever possible for our repairs here at Quality Fleet Service. These are covered by Hyundai's parts warranty for 1 year or 1,500 hours in addition to any other warranty coverage you have. This ensures your equipment keeps working for as long as you do.

  • Engine

    Make/model CUMMINS / QSB6.7
    Type Water-cooled, 4-cycle, turbocharged air-cooled, direct-injection, electronically controlled diesel engine
    Gross power 158 HP (118 kW) / 2,100 rpm
    Net power 156 HP (116 kW) / 2,100 rpm
    Maximum torque 86 kg·m (622 lb·ft) / 1,500 rpm
    No. of cylinders 6
    Bore × Stroke 107 mm (4.21") x 124 mm (4.88")
    Displacement 6.7 (409 in³)
    Compression ratio 17.3 : 1
    Air cleaner Dry, 2-stage dual elements
    Alternator 24 V - 95 Amp
    Battery 2 x 12 V - 120 Ah, 850 CCA
    Starting motor 24 V - 7.8 kW

  • Hydraulic System

    Type Load-sensing hydraulic system
    Pump Variable-displacement piston pump 149 L/min (39.4 gpm)
    Control valve 2 spool (bucket, boom)
    3 spool (bucket, boom, aux)
    (opt.) Pilot pressure controlled type
    System pressure 280 kgf/cm² (3,982 psi)
    Lift circuit The valve has four functions: raise, hold, lower and float.
    Can adjust automatic kick-out from horizontal to full lift
    Tilt circuit The valve has three functions: tilt back, hold and dump
    Can adjust automatic bucket positioner to desired load angle
    Cylinder HL940/HL940XT Type: Double acting
    No. of cylinders-bore x stroke
    Lift: Lift 2-110 mm x 738 mm (4.3""x 29.1"")
    Tilt: Tilt 1-125 mm x 505 mm (4.9""x 19.9"")
    Cycle times HL940/HL940XT Raise: 5.5 sec
    Dump: 1.1 sec
    Lower: 3.0 sec
    Total: 9.6 sec

  • Transmission

    Torque converter type 3-element, single-stage, single-phase
    Travel speed, FWD 1st 6.9 (4.3)
    Travel speed, FWD 2nd 12.7 (7.9)
    Travel speed, FWD 3rd 24.9 (15.5)
    Travel speed, FWD 4th 40 (24.9)
    Travel speed, REV 1st 7.3 (4.5)
    Travel speed, REV 2nd 13.4 (8.3)
    Travel speed, REV 3rd 26.1 (16.2)

    Transmission: Fully automatic power shift, countershaft type with soft-shift in range and direction. Properly matched torque converter to engine and transmission for excellent working ability.

  • Axles

    Drive system Four-wheel drive system
    Mount Rigid front axle and oscillating rear axle
    Rear axle oscillation ±12° (total 24°)
    Hub reduction Planetary reduction at wheel end
    Differential Hydraulic lock (front) / conventional (rear)
    Reduction ratio 21.53

  • Brakes

    Service brakes Hydraulically actuated, wet-disc brakes actuate all 4 wheels
    Independent axle-by-axle system
    Self-adjusting and wheel speed brake
    Parking brake Spring-applied, hydraulically released brake
    Emergency brake When brake oil pressure drops, indicator light alerts operator, and parking brake automatically applies

  • Tires

    Type Tubeless, loader design tires
    Standard 20.5 R25, L3
    Options include 20.5-25, 16PR, L3 | 17.5-25, 12PR, L3
    20.5-25, 16PR, L2 | 17.5-25, 12PR, L2
    20.5 R25, XHA2, L3 | 17.5 R25, XHA1, L3

  • Steering System

    Type Load-sensing hydrostatic articulated steering
    Pump Variable-displacement piston pump 149L/min (39 gpm)
    Relief valve setting 210 kgf/cm² (2,987 psi)
    Cylinder Double acting
    65 mm (2.56") x 429 mm (16.9")
    Steering angle 40° both right and left angle, respectively
    Additional Features Center-point frame articulation Tilt and telescopic steering column

  • Service Refill Capacities

    Fuel tank 220L (58 gal)
    DEF tank 19L (5.0 gal)
    Cooling system 34L (9.0 gal)
    Crankcase 18L (4.8 gal)
    Transmission 27L (7.1 gal)
    Front axle 24L (6.3 gal)
    Rear axle 24L (6.4 gal)
    Hydraulic tank 90L (23.8 gal)
    Hydraulic system (including tank) 130L (34.0 gal)

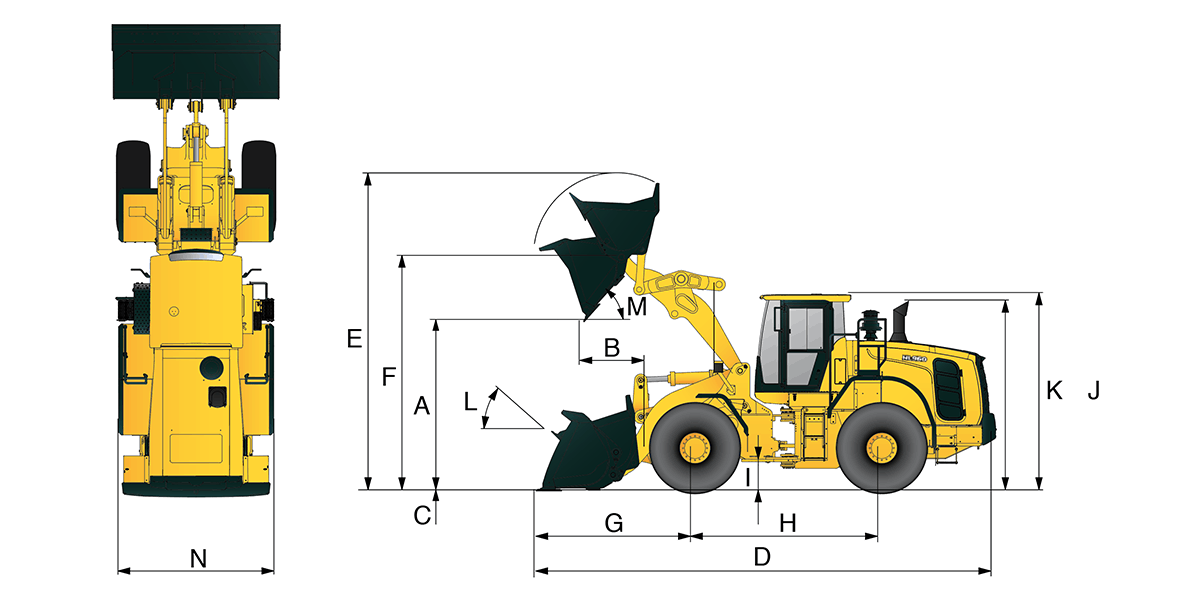

Hyundai HL940XT Wheel Loader Dimensions

All dimensions are approximate.

Bucket type: General purpose bolt-on cutting edge.

Dimensions

  • A. Dumping clearance at max. height and 45° dump angle. 3390mm (11' 1.5")
    B. Reach Full Lift: 1010mm (3' 3.8")
    2,134mm height (7 ft) | 2,045mm (6' 8.5")
    C. Digging depth 130mm (5.1")
    D. Overall length (On ground | At carry) 8,080mm (26' 6.1") | 8,030mm (26' 4.1")
    E. Overall height (fully raised) 5,860mm (19' 2.7")
    F. Bucket pivot max. height 4,425mm (14' 6.2")
    G. Front overhang 3,075mm (10' 1.1")
    H. Wheelbase 2,950mm (9' 8")
  • I. Ground clearance 417mm (1' 4.4")
    J. Height over exhaust 3,245mm (10' 7.8")
    K. Height over cab 3,300mm (10' 9.9")
    L. Rollback angle (deg) (On ground | At carry) 42 | 50
    M. Dump angle (deg) 47
    - Clearance circle, over bucket (carry position) 12,130mm (41' 2.1")
    - Clearance circle, outside of tires 10,674mm (35')
    - Clearance circle, inside of tires 5,814mm (19' 1")
    N. Overall width with bucket 2,600mm (8' 6.3")

Quality Fleet Service Will Be Here for You

Here at Quality Fleet Service, we offer total support for our commercial customers because we only focus on working with other businesses to keep you up and running. That means we are not only a licensed Hyundai retailer, but we are also certified to offer long-term support and service on the Hyundai HL940XT or any other machinery that we offer. You can bring your wheel loader back to us for maintenance and service as needed, confident in the knowledge that you trust your vital equipment with skilled technicians that specialize in working on your machinery.

We also offer on-road and on-site support when you cannot come to us. Whether you are out at a job site, deep in a forest, or just about anywhere else in the area, we will come to you and provide whatever service and repairs we can to get you back to work. And since we know that breakdowns and problems do not only occur during business hours, we offer emergency 24-hour service and support for our customers. If your machinery has a problem in the middle of the night, on the weekend, or during a serious winter storm, we will come to you to help you get the job done.

When you can come to us, our large, full-service facility has everything we need to perform regular service and repairs. We use Hyundai factory parts to keep your machinery in great shape and ensure your warranty remains intact. Visit us at Quality Fleet Service today and see how we can help your business succeed.
