Hyundai HL955XT Wheel Loader

  • Net Power: 197hp (147 kW) at 2,200 rpm

    Operating Weight: 15,775 kg (34,780 lbs)

    Standard Bucket: 2.8 m3 (3.7 yd3)

  • Hyundai HL955XT Cabin

  • Performance

    • Hydraulic Locking Front axle w/ conventional rear axle
    • Hi-Mate Remote Management System
    • Eco Gauge
    • Improved Bucket Fill Factor

  • Convenience

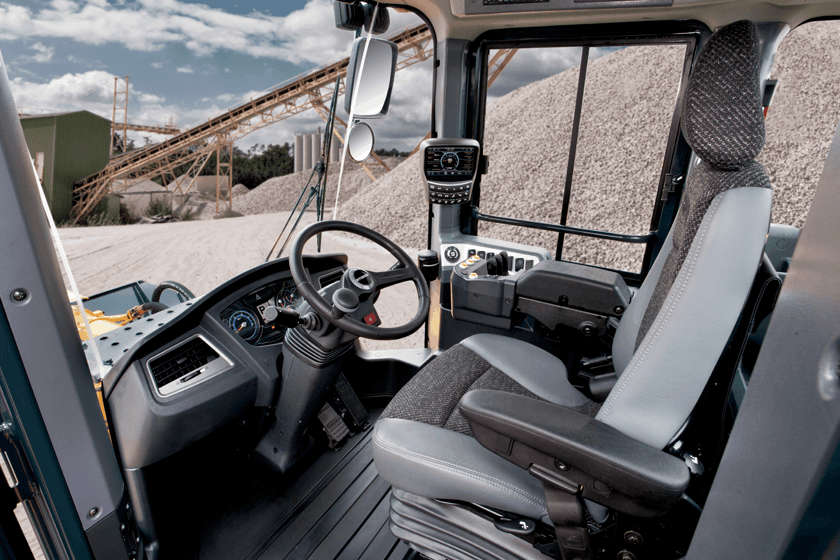

    • Cab Comfort
    • Audio System
    • Heated Air-Ride Seat
    • Wide Touchscreen Monitor

  • Serviceability

    • Fully Sealed Engine Room with Tilt-Back Hood
    • Centralized and Easy Access to Service Points
    • Engine Air Filter with Increased Service Life
    • Initial Maintenance Interval

Whether your business is in construction, forestry, or a number of other industries, we are willing to bet that the equipment you use is vital to getting your work done. The Hyundai HL955XT is a perfect example of the kind of machinery that you might need for clearing large amounts of debris or loading up a truck with aggregate material. Whatever your needs for a wheel loader, the HL955XT is a great option that gives you excellent power, a solid operating weight limit, and a large bucket for handling a lot of material at once.

Figuring out exactly which wheel loader you need can be tricky, however, and it is such an important investment for your business that you certainly want to be sure you get the right one. Here at Quality Fleet Service, our knowledgeable salespeople will work with you to figure out just what you need and ensure you get the right machinery to handle any job. With our long-term, expert service, and support, we will help you with maintenance and repairs for years to come, whether you bring your machinery to us or need us to come to you. Call us at Quality Fleet Service today and discover how we can help your business grow.

The Hyundai HL955XT

Within the lineup of wheel loaders that we offer here at Quality Fleet Service, the Hyundai HL955XT is not the largest or the smallest but sits about in the middle. This makes it a great option if you know that you do not need anything too big, but you want to make sure that you can handle a wide range of jobs. If you know exactly what you need, then we can help you get the right machinery; if you have a lot of questions, on the other hand, then we are here and ready to help you figure out what will work best for you.

The Hyundai HL955XT has a powerful engine that provides you with up to 197 hp and up to 685 lb-ft of torque. It has an operating weight of up to 34,780 lbs or up to 15,775 kg and a full-turn tipping load weight of up to 23,766 lbs or 10,780 kg. The standard bucket that it comes with has a capacity of up to 3.7 cu.yd. or 2.8 cu.m., and this model has a bucket breakout force of up to 28,600 lbs or 13,000 kg.

When going forward, the Hyundai HL955XT has a maximum speed of up to 24.9 mph and a top speed of up to 17.4 mph when in reverse. Thanks to its extended bar design, this wheel loader has a dump clearance of just over 9 feet, so keep that in mind when you are considering your options. If you are unsure of which wheel loader is best for you, then our large test pit here at Quality Fleet Service should be your next stop.

We let you test different machinery options for yourself, so you can see how they feel and perform, and get a sense of their real-world functionality and decide on which model is right for you. Since we offer a number of different Hyundai wheel loaders, we can help you find whichever one will best meet your needs and ensure you can get as much work done as you require. If you are not sure that a wheel loader is even the right option, then our test pit is the perfect place to try out a few different types of equipment and determine the best solution for all of your needs.

Hyundai's World Class Warranty

Hyundai has some of the very best warranty coverage in the industry, which ensures your investment in your machinery is protected. The equipment that you use is not just a tool--it is the backbone of your business and ensures you are able to get your work done. You deserve the peace of mind that comes from knowing that your machinery is covered and protected by the best warranty possible.

The Hyundai HL955XT is covered by:

  • 3-year or 3,000-hour full machine warranty
  • 5-year or 10,000-hour structural warranty
  • Limited lifetime articulation joint warranty

In addition to this, Hyundai offers an extended warranty of up to 5 years or 10,000 hours of full machine coverage. The great thing about Hyundai's extended warranty is that you can buy it at any time while your equipment is still under the standard warranty. So even if you are unsure at the time of purchase, you can choose added protection later.

All the Hyundai factory parts that we use here at Quality Fleet Service for maintenance and repairs are covered by a 1 year or 1,500-hour warranty from the manufacturer. This ensures your equipment remains in great condition, and you know that the parts we use are the best available. Plus, since we use manufacturer parts from Hyundai, we ensure that your equipment warranty is preserved and remains in full effect.

  • Engine

    Make/model CUMMINS / QSB6.7
    Type Water-cooled, 4-cycle, turbocharged air-cooled, direct-injection electronically controlled diesel engine
    Gross power 200 HP (149 kW) / 2,200 rpm
    Net power 197 HP (147 kW) / 2,200 rpm
    Maximum torque 95 kg.m (685 lb·ft) / 1,400 rpm
    No. of cylinders 6
    Bore × Stroke 107 mm (4.21") x 124 mm (4.88")
    Displacement 6.7L (409 in³)
    Compression ratio 17.3 : 1
    Air cleaner Dry, 2-stage dual elements
    Alternator 24 V - 95 Amp
    Battery 2 x 12 V – 160 Ah, 900 CCA
    Starting motor 24 V - 7.8 kW

  • Hydraulic System

    Type Load-sensing hydraulic system
    Pump Variable-displacement piston pump, 185 L/min (49 gpm)
    Control valve 2-spool (bucket, boom)
    3-spool (bucket, boom, aux)
    System pressure 280 kgf/cm² (3,983 psi)
    Lift circuit The valve has four functions: raise, hold, lower and float
    Can adjust automatic kick-out from horizontal to full lift
    Tilt circuit The valve has three functions: tilt back, hold and dump
    Can adjust automatic bucket positioner to desired load angle
    Cylinder Type: double acting
    No. of cylinders–bore x stroke:
    Lift: 2-125mm (4.9") x 745mm (29.3")
    Tilt: 1-140mm (5.5") x 490mm (19.3")
    Cycle times Raise: 5.8 sec
    Dump: 1.2 sec
    Lower: 3.8 sec
    Total: 10.8 sec

  • Transmission

    Torque converter type 3-element, single-stage, single-phase
    Travel speed, km/h (mph) Forward: 4 Speed 1st 6.9 (4.3) | 2nd 11.4 (7.1) | 3rd 23.0 (14.3) | 4th 38.5 (23.9)
    Travel speed, km/h (mph) Forward: 5 Speed w/ lockup clutch 1st 6.4 (4.0) | 2nd 11.1 (6.9) | 3rd 17.1 (10.6) | 4th 26.6 (16.5) | 5th 40.0 (24.9)
    Travel speed, km/h (mph) Reverse: 4 Speed 1st 7.3 (4.5) | 2nd 12.0 (7.5) | 3rd 24.3 (15.1)
    Travel speed, km/h (mph) Reverse: 5 Speed w/ lockup clutch 1st 6.7 (4.2) | 2nd 11.7 (7.3) | 3rd 28.0 (17.4)

    Transmission: Fully automatic power shift, countershaft type with soft-shift in range and direction.

  • Axles

    Drive system Four-wheel drive system
    Mount Rigid front axle and oscillating rear axle
    Rear axle oscillation ±11° center pin-loaded
    Hub reduction Planetary reduction at wheel end
    Differential Hydraulic lock (front) / conventional (rear)
    Reduction ratio 23.680

  • Steering System

    Type Load-sensing hydrostatic articulated steering
    Pump Variable-displacement piston pump, 109L /min (29 gpm)
    Relief valve setting 250 kgf/cm² (3,556 psi)
    Cylinder Double acting
    2-65 mm (2.6") x 418 mm (16.5")
    Steering angle 40° both right and left angle, respectively
    Additional Features Center-point frame articulation
    Tilt and telescopic steering column

  • Service Refill Capacities

    Fuel tank 250L (66 gal)
    DEF tank 27L (7.1 gal)
    Cooling system 42L (11.1 gal)
    Crankcase 18L (4.8 gal)
    Transmission 33L (8.7 gal)
    Front axle 32L (8.5 gal)
    Rear axle 24L (6.3 gal)
    Hydraulic tank 108L (28.5 gal)
    Hydraulic system (including tank) 188L (49.7 gal)

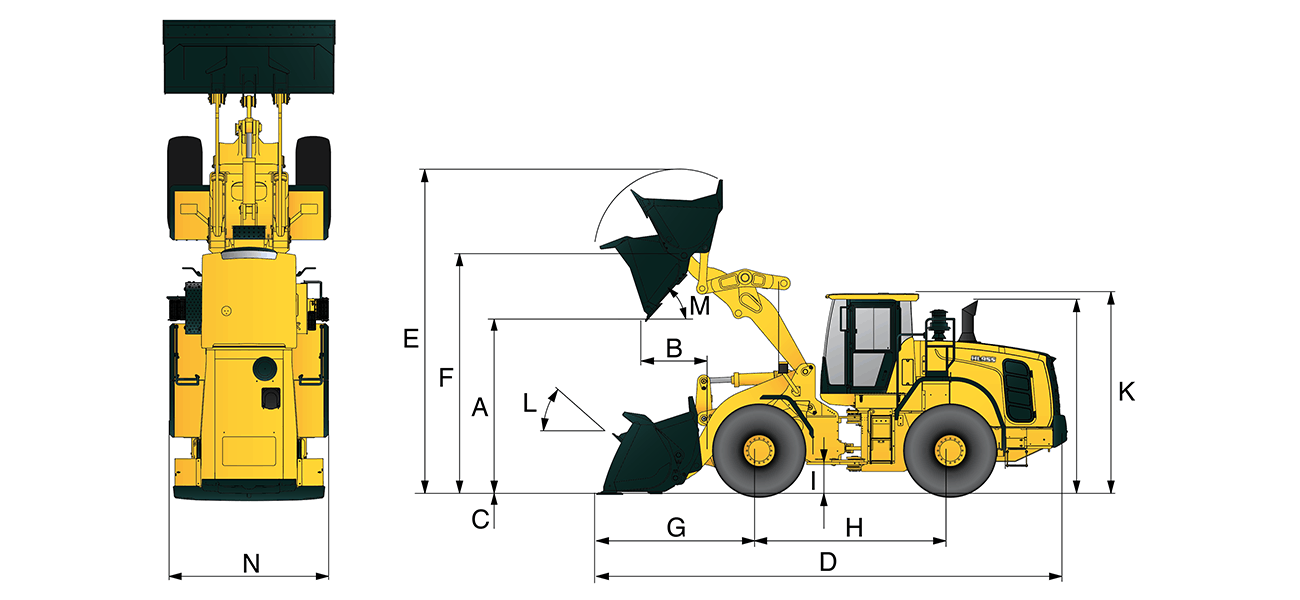

Dimensions

  • A. Dumping clearance at max. height and 45° dump angle. 3,415mm (11' 2.4")
    B. Reach Full lift: 1,165mm (3' 9.9")
    2,134mm height (7 feet): 2,200mm (7' 2.6")
    C. Digging depth 120mm (4.7")
    D. Overall length (On ground | At carry) 8,235mm (27' 2") | 8,170mm (26' 9.7")
    E. Overall height (fully raised) 5,955mm (19' 6.5")
    F. Bucket pivot height (max) 4,515mm (14' 9.8")
    G. Front overhang 3,220mm (10' 6.8")
    H. Wheelbase 3,050mm (10' 0.1")
  • I. Ground clearance 410mm (1' 4.1")
    J. Height over exhaust 3,273 (10' 8.9")
    K. Height over cab 3,390 (11' 1.5")
    L. Rollback angle (On ground | At carry) 43° | 48°
    M. Dump angle 48°
    - Clearance circle, over bucket (carry position) 13,050mm (42' 9.8")
    - Clearance circle, outside of tires 11,014mm (36.13)
    - Clearance circle, inside of tires 5,854mm (19.20)
    N. Overall width (With bucket | Without bucket) 2,740mm (8' 11.9") | 2,580mm (8' 5.6")
Hyundai HL955XT Wheel Loader Dimensions
