Hyundai HX235LCR Crawler Excavator
Net Power: 173 hp (129 kW) at 1,950 rpm
Operating Weight: 24,560 kg (54,140 Ibs)
Standard Bucket: 0.80 m3 (1.05 yd3)
Performance
- Eco Gauge
- IPC (Intelligent Power Control)
- Dozer Blade
- Standard HHI bucket
- Rearview camera
- Double-acting hydraulic piping
Convenience
- Intelligent 8″ Touchscreen Monitor
- Bluetooth Audio with MP3, radio, hands-free
- Auto climate control (AC/Heat)
- Heated Air-suspension Seat
Serviceability
- Battery Master Switch
- 4 front work lights, 2 boom lights, 1 rear light
- Hi-Mate - Telematics System
- Auto diagnostic system
Engine
Maker / Model CUMMINS QSB6.7 Engine Type Water cooled, 4 cycle Diesel, 6-cylinders in line, direct injection, turbocharged charger and air cooled Rated flywheel horse power SAE J1995 (gross) 183HP (136kW) / 1,950 rpm
J1349 (net) 173HP (129kW) / 1,950 rpmMax. torque 85.7 kgf.m (620lbf.ft) / 1,500rpm Bore × Stroke 107 mm X 124 mm (4.2" X 4.9") Piston displacement 6,700 cc (409 in³) Batteries 2 X 12V X 100 Ah Starting motor 24V, 4.8 kW Alternator 24V, 95 Amp Drives and Brakes
Drive method Fully hydrostatic type Drive motor Axial piston motor, in-shoe design Reduction system Planetary reduction gear Max. drawbar pull 20,600 kgf (45,415 lbf) Max. travel speed (high / low) 5.5 km/hr (3.5mph) / 3.3 km/hr (2.1mph) Gradeability 35° (70%) Parking brake Multi wet disc Hydraulic System
Main Pump Type Variable displacement tandem axis piston pumps Max. flow 2 X 228.2 ℓ/min (60.3 US gpm) Sub-pump for pilot circuit (Gear Pump) 28.5 L/min (7.5 gpm) Operating Weight (Approximate)
Shoe Width: 700mm (28") Operating Weight: 24,280 kg (53,530 lbs)
Ground Pressure 0.44 kgf/cm² (6.26 psi)Shoe Width: 800mm (32") Operating Weight: 24,560 kg (54,140 lbs)
Ground Pressure 0.39 kgf/cm² (5.55 psi)Shoe Width: 900mm (36") Operating Weight: 24,840 kg (54,760 lbs)
Ground Pressure 0.35 kgf/cm² (4.98 psi)Operating weight: including 5,680mm (18' 8") boom, 2,920mm (9' 7") arm, SAE heaped 0.80m3 (1.05 yd3) bucket, lubricant, coolant, full fuel tank, full hydraulic tank, and all standard equipment.
Swing System
Swing motor Fixed displacement axial piston motor Swing reduction Planetary gear reduction Swing bearing lubrication Grease-bathed Swing brake Multi wet disc Swing speed 10.8 rpm Control System
Pilot control Two joysticks with one safety lever
(LH): Swing and arm
(RH): Boom and bucket (ISO)Traveling and steering Two levers with pedals Engine throttle Electric, Dial type Control System: Pilot pressure operated joysticks and pedals with detachable lever provide almost effortless and fatigueless operation.
Cross-Sensing and Fuel-Saving Pump System
Hydraulic Cylinders
No. of cylinders (Bore × Stroke) Boom 2-125 × 1,260mm (4.92" × 49.6") Arm 1-160 × 1,610mm (6.29" × 63.3") Bucket 1-120 × 1,055mm (4.7" × 41.5") Blade 2-130 × 240mm (5.1" × 9.4") No. of cylinder Bore × Stroke (2-Piece Boom) 1st 2-105 × 995mm (4.1" × 39.2") 2nd 1-145 × 613mm (5.7" × 24.1") Relief Valve Setting
Implement circuits 400 kgf/cm² (5,690 psi) Travel 350 kgf/cm² (4,980 psi) Power boost (boom, arm, bucket) 380 kgf/cm² (5,410 psi) Swing circuit 285 kgf/cm² (4,050 psi) Pilot circuit 40 kgf/cm² (570 psi) Service valve Installed Hydraulic Motors
Travel Two speed axial pistons motor with brake valve and parking brake Swing Axial piston motor with automatic brake
Service Refill Capacities
Fuel tank 320L (84.5 gal) Engine coolant 40L (10.6 gal) Engine oil 23.7L (6.3 gal) Swing device 7L (1.8 gal) Final drive (each) 4.5L (1.2 gal) DEF / AdBlue R tank 27L (7.1 gal) Hydraulic system (including tank) 275L (72.6 gal) Hydraulic tank 160L (42.3 gal) Undercarriage
Center frame X - leg type Track frame Pentagonal box type No. of shoes on each side 49(ea) No. of carrier roller on each side 2(ea) No. of track roller on each side 9(ea) No. of rail guard on each side 2(ea) Undercarriage Note: The X-leg type center frame is integrally welded with reinforced box-section track frames. The undercarriage includes lubricated rollers, idlers, track adjusters with shock absorbing springs and sprockets, and a track chain with double or triple grouser shoes.
Dimensions

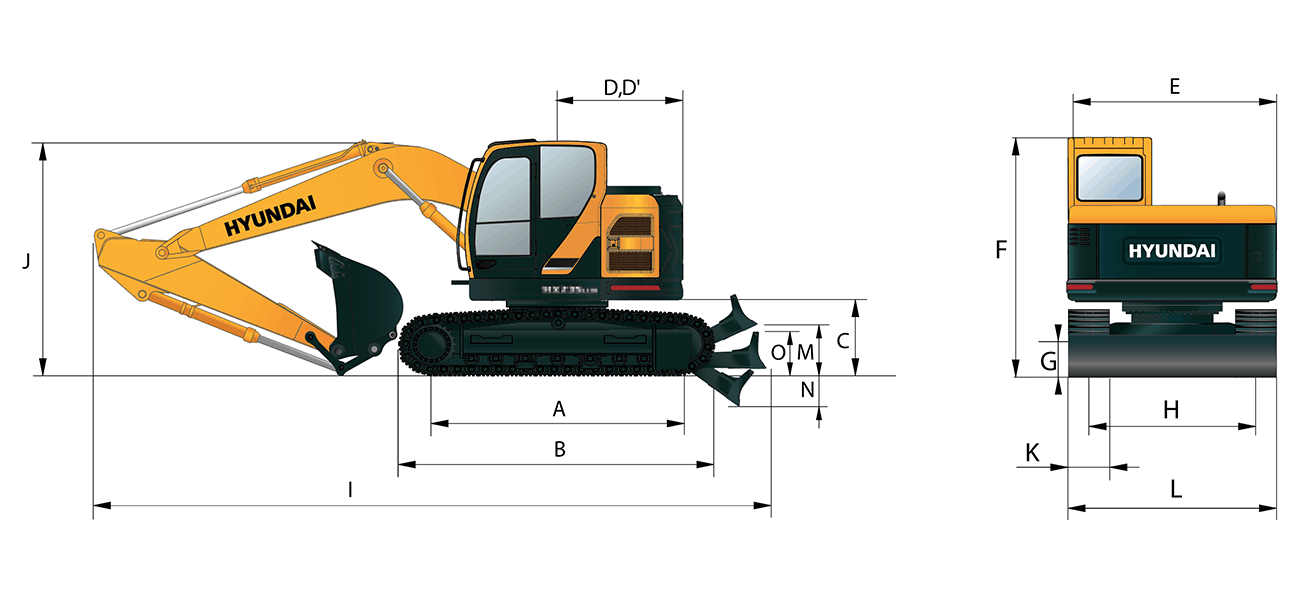

A Tumbler distance 3,650mm (12' 0") B Overall length of crawler 4,404mm (14' 6") C Ground clearance of counterweight 1,080mm (3' 7") D Tail swing radius & D' Rear-end length 1,780mm (5' 10") E Overall width of upperstructure 2,980mm (9' 9") F Overall height of cab 3,290mm (10' 10") G Min. ground clearance 480mm (1' 7") H Track gauge 2,390mm (7' 10") M Ground clearance of blade up 550mm (1' 10") N Depth of blade down 410mm (1' 4") O Height of blade 740mm (2' 5") - Boom length 5,680mm (18' 8") - Arm length 2,000mm (6' 7") | 2,400mm (7' 10") | 2,920mm (9' 7") I Overall length 9,040mm (29' 8") | 8,950mm (29' 4") | 8,910mm (29' 3") J Overall height of boom 3,200mm (10' 6") | 3,100mm (10' 2") | 3,020mm (9' 11") K Track shoe width 700mm (28") | 800mm (32") | 900mm (36") L Overall width 2,700mm (8' 10") | 3,190mm (10' 6") | 3,290mm (10' 10")
