Hyundai HX140L / HX140LC Crawler Excavator

  • Net Power: 116 hp (92.6 kW) at 1,950 rpm

    Operating Weight: 14,535 kg (32,044 lbs)

    Standard Bucket: 0.58 m3 (0.76 yd3)

  • The Hyundai HX140L Cabin Monitor is shown.

  • Performance

    • Variable Power Control
    • Attachment Flow Control
    • Fuel Efficiency
    • Cycle Time Improvement

  • Convenience

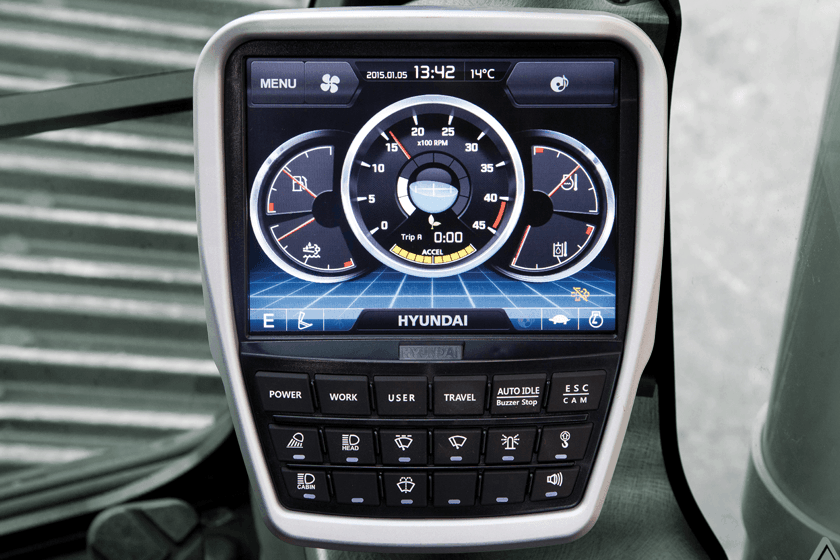

    • Intelligent 8" Touchscreen Monitor
    • Advanced Audio System
    • Innovative Haptic Control Module
    • Deluxe Operator's Seat

  • Serviceability

    • Easy Access to DEF System
    • Cab Air Filter Access
    • Upper-structure Access
    • Stacked Cooler Design

  • Engine

    Make / Model PERKINS / 1204F
    Type 4-cycle turbocharged, air-cooled diesel engine
    Rated flywheel horsepower SAE J1995: (gross) 124 HP (92.6kW) at 1,950 rpm
    J1349: (net) 116 HP (87 kW) at 1,950 rpm
    Max. torque 54 kgf·m (391 lbf·ft) @ 1,400 rpm
    Bore × Stroke 105 × 127 mm (4.13"× 5")
    Piston displacement 4,400 cc (269 in³)
    Batteries 2 × 12 V × 100 Ah
    Starting motor 24 V - 4.5 kW
    Alternator 24 V - 100 Amp

  • Service Refill Capacities (Liters | Gallons)

    Fuel tank 270 L (71.3 gal)
    Engine coolant 15.5 L (4.1 gal)
    Engine oil 10.5 L (2.8 gal)
    Swing device 2.5 L (0.66 gal)
    Final drive (each) 2.2 L (0.6 gal)
    Hydraulic system (including tank) 210 L (55.5 gal)
    Hydraulic tank 124 L (32.8 gal)
    DEF/AdBlue® tank 19 L (5 gal)

Hydraulic and Cross-Sensing/Fuel-Saving Pump Systems

  • Main Pump

    Type Variable displacement tandem axial piston pumps
    Max. flow 2 x 126.7 /min / 2 x 33.4 gpm
    Sub-pump for pilot circuit (Gear Pump) 29.2 /min (7.7 gpm)

  • Hydraulic Motors and Cylinders

    Travel Two-speed axial motor with brake valve and parking brake
    Swing Axial piston motor with automatic brake
    No. of cylinder bore X stroke
    Boom 105 × 1,075 mm
    Arm 115 × 1,138 mm
    Bucket 100 × 840 mm

  • Relief Valve Setting

    Implement circuits 400 kgf/cm² (5,690 psi)
    Travel 350 kgf/cm² (4,980 psi)
    Power boost (boom, arm, bucket) 380 kgf/cm² (5,690 psi)
    Swing circuit 285 kgf/cm² (4,054 psi)
    Pilot circuit 40 kgf/cm² (570 psi)
    Service valve Installed

  • Drives and Brakes

    Drive method Fully hydrostatic type
    Drive motor Axial piston motor, in-shoe design
    Reduction system Planetary reduction gear
    Max. drawbar pull 12,000 kgf (26,455 lbf)
    Max. travel speed (high / low) 5.6 km/hr (3.5 mph) / 3.3 km/hr (2.1 mph)
    Gradeability 35° (70%)
    Parking brake Multi wet disc

  • Swing System

    Swing motor Fixed displacement axial piston motor
    Swing reduction Planetary gear reduction
    Swing bearing lubrication Grease-bathed
    Swing brake Multi wet disc
    Swing speed 11.6 rpm

Operating Weight (Approximate)

Triple Grouser Shoes - 600 mm (24") Width HX140L: 14,535 kg (32,044 lbs) | 0.38 kgf/cm² (5.39 psi)
Triple Grouser Shoes - 700 mm (28") Width HX140L: 14,745 kg (32,507 lbs) | 0.33 kgf/cm² (4.66 psi)

Operating weight: including 4,600 mm (15' 1") boom, 3,000 mm (9' 10") arm, SAE heaped 0.58 m3 (0.76 yd3) bucket, lubricant, coolant, full fuel tank, full hydraulic tank, max 2,300 kg (5,071 lb) counterweight and all other standard equipment.

  • Undercarriage

    Center frame X - leg type
    Track frame Pentagonal box type
    No. of shoes on each side 46 EA
    No. of carrier rollers on each side 1 EA
    No. of track rollers on each side 7 EA
    No. of rail guards on each side 1 EA

    Undercarriage Note: The X-leg type center frame is integrally welded with reinforced box-section track frames. The undercarriage includes lubricated rollers, idlers, track adjusters with shock absorbing springs and sprockets, and a track chain with double or triple grouser shoes.

  • Control

    Pilot control Two joysticks with one safety lever
    (LH) Swing and arm
    (RH) Boom and bucket
    Traveling and steering Two levers with pedals
    Engine throttle Electric, dial type

    Control System: Pilot pressure-operated joysticks and pedals with detachable lever provide more-precise control, with reduced effort and fatigue.

Dimensions

  • A Tumbler distance 3,000 mm (9' 10")
    B Overall length of crawler 3,708 mm (12' 2")
    C Ground clearance of counterweight 940 mm (3' 1")
    D Tail swing radius 2,330 mm (7' 7")
    D' Rear-end length 2,330 mm (7' 7")
  • E Overall width of upper structure 2,475 mm (8' 1")
    F Overall height of cab 2,860 mm (9' 5")
    G Min. ground clearance 440 mm (1' 5")
    H Track gauge 2,000 mm (6' 7")
    I Overall height of guardrail 3,100 mm (10' 2")

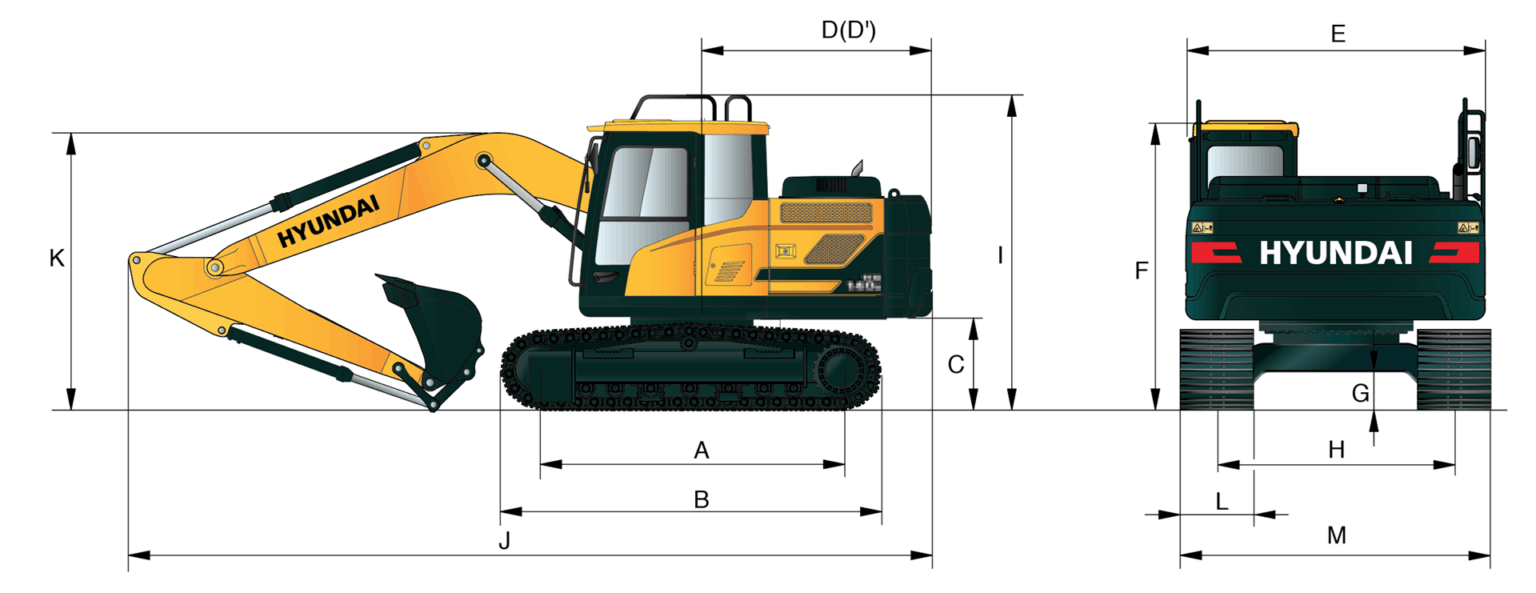

Hyundai HX140L Dimensions Diagram
Crawler Excavators
